HSBH:
Horizontal Solution Bulk Hold

Commercial scale biomanufacturing challenges media and buffer unit operations.

The HSBH, Horizontal Solution Bulk Hold System, is a purpose-engineered innovation from ConeCraft and is the plug-and-play answer for optimized upstream and downstream media and buffer commercial scale unit operations.

ConeCraft offers modular, ergonomic, and safe mezzanine and cleanroom designs with full engineering collaboration and support from concept to detailed design.

Partner with ConeCraft, the industry leader for reliable and proven commercial scale media and buffer management.

Optimized Commercial Scale Media and Buffer Management

  • Innovative mezzanine and cleanroom design with full engineering support. Interlocking framework with vertical and cross bracing for stacked configurations

  • Able to use BPCs from numerous GMP-validated providers around the globe

  • 500L, 1000L, 2000L, 3000L, 4000L volumes. Options available for added functionality

  • Modular and ergonomic for easy installation into existing or new space

  • Patented operational features for ease of use and safety

  • Common service connection to each unit with all internal electrical and pneumatic elements

An Innovative Low Risk Installation Process

STEP 1

The starting vertical is leveled, positioned in the room, and bolted to the floor, if desired.

STEP 2

A second vertical with cross brace is added.

STEP 3

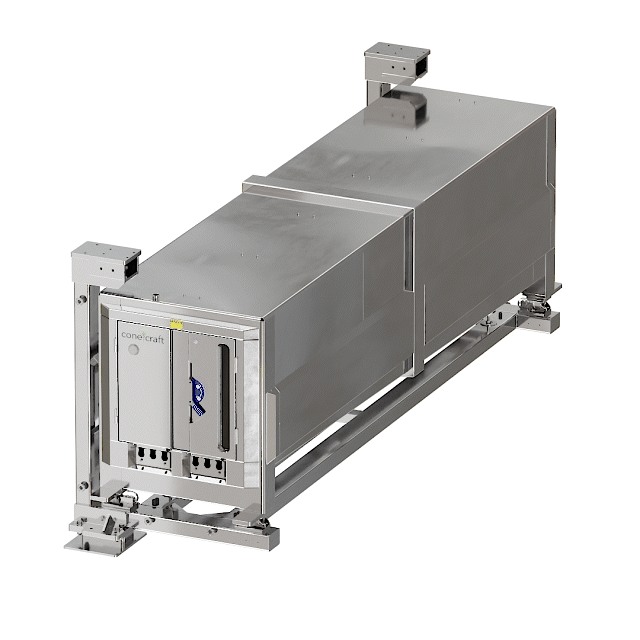

An HSBH is placed into the frame pockets on either side of the vertical using a fork truck. Load support jacks are positioned at each end of the HBSH while the next structure is positioned.

STEP 4

Additional HSBHs may now be added, either at grade level, mezzanine, or both (as shown).

STEP 5

(for mezzanine configuration)

Vertical bracing, safety railing, walkway, stairway, and emergency ladders can now be added.

STEP 5

(for cleanroom design)

Enhanced Features

ConeCraft innovative engineering for operational advantages

  • Runs entire length of BPCP for reliable low-risk handling, loading and removing large volume BPCs

  • Features fluid level visual indication for up to 20 feet, silent lock to prevent accidental opening while full, and emergency egress

  • Options include load cells, air radar liquid level, jacket with temperature control, interior lighting and camera
